ARROWHEAD ROCKDRILL

ARROWHEAD ROCKDRILL 21003L

Request Quote

Hi, my name is

Invalid value

and I would like to get more information on this ARROWHEAD ROCKDRILL 21003L .
I can be reached by email at

Invalid value

or by phone at

Invalid value

Part #:	21003L
Mfg:	ARROWHEAD ROCKDRILL
Category:	SKID STEER ATTACHMENTS
Sub-Category:	POST DRIVER SKID STEER NO GRAPPLE NO TILT
Industry:	CONSTRUCTION
Machine Size:	SSL MOUNT
Attachment Size:	MAX POST WIDTH 8.5" X 9.25"
List Price:	$10,835.00 (not including Freight)
Inventory:	21003L: 0 AFS / 0 QOH / 62 QOO / 0 ISBF

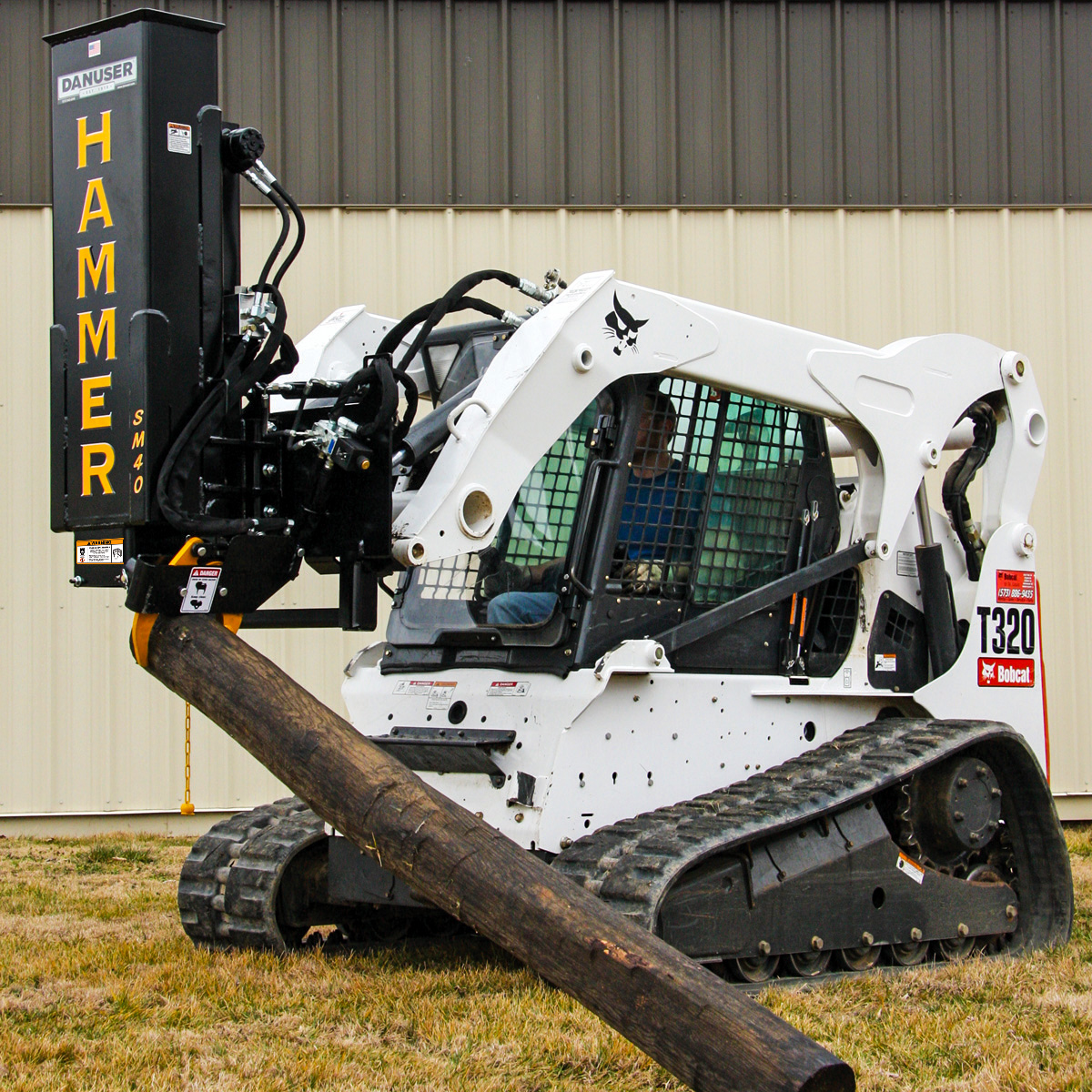

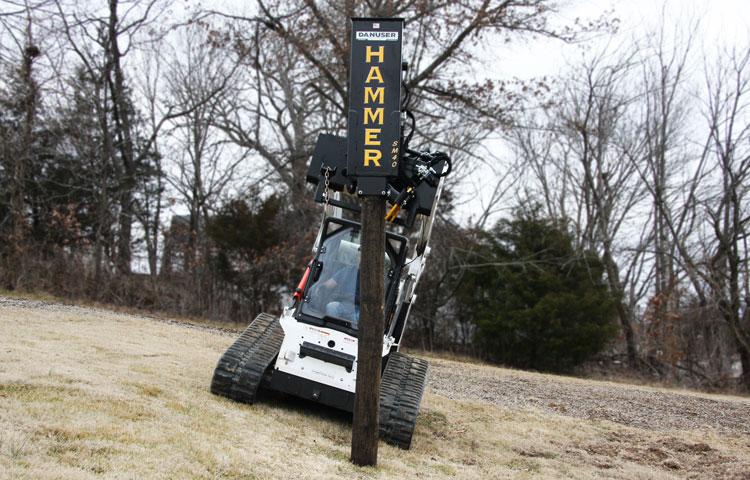

DANUSER SM40 WITH TILT AND GRAPPLE AND ADDITIONAL WEIGHT

The SM40 Hammer Hydraulic Post Driver with Skidsteer Mount can be used to drive anything from t-posts up to railroad ties. The grapple allows the operator to pick up and drive the post from the operator seat. The tilt feature accommodates driving a post on non-level and uneven areas. Includes an integrated post puller and hoses with flat faced couplers. Also includes factory installed weight kit. The Hammer DOES NOT operate with springs, hydraulic cylinder, or return line. Grapple option can be added to any model for a true one-person operation (does not include t-posts). The grapple option will allow the operator to grab the post off the ground, load it into the machine, and drive it in the ground without leaving the skid-steer seat. Tilt option allows up to 20° left or right. The hammer weight is 300 lb. from the factory. Additional weight can be added for a total of 500 lb.

Post Dimensions
T-post to Railroad tie
Impact Force
82,000 lb.
Impact Energy
1,709 ft.-lb.
Length of Stroke (inches)
40"
Hammer Weight
500 lb.
Strokes per Minute
35
Overall Length (inches)
45.5"
Overall Width (inches)
25.5"
Overall Height (inches)
64"
Tilt (left or right) (degrees)
20°
Machine Weight
1,245 lb.
Hydraulic Requirements
1,500 - 3,000 PSI; 12 - 30 GPM
Maximum Post Width (inches)
8.5" x 9.25"
Tractor Requirements
75 HP Minimum

Aux Wiring Harnesses

Add An Optional Wiring Harness To Allow The Optional Tilt Function To Operate From The Vehicle Joystick Controls. Wiring Harnesses Replace The Cigarette Lighter Plug On The Hammer Standard Harness.
Bobcat Has A 7-Pin Connector On Some Newer Skid Steer Units That Is Not Available Through Danuser, Contact Your Bobcat Dealer For A 7-Pin To 14-Pin Adapter
All Wiring Harnesses Are 12? In Length
** Requires Connector Contacts Be Installed In A Switchable +12V Pin Location & Ground Pin Location. Mapping Of Skid Steer Connector Pins Required.

Battery Wiring Harness

Connect To Your Vehicle Battery To Supply Power For The Optional Tilt Function. This Replaces The Cigarette Lighter Plug On The Hammer Standard Harness.

Name

Photo (if available)

ASV RT120 HIGH FLOW

ASV RT75 HIGH FLOW

ASV RT75 STANDARD FLOW

BOBCAT T62 HIGH FLOW

BOBCAT T62 STANDARD FLOW

BOBCAT T64 HIGH FLOW

BOBCAT T64 STANDARD FLOW

BOBCAT T66 HIGH FLOW

BOBCAT T66 STANDARD FLOW

BOBCAT T740 HIGH FLOW

BOBCAT T740 STANDARD FLOW

BOBCAT T76 HIGH FLOW

BOBCAT T76 STANDARD FLOW

BOBCAT T770 HIGH FLOW

BOBCAT T770 STANDARD FLOW

BOBCAT T870 HIGH FLOW

BOBCAT T870 STANDARD FLOW

CASE TR270 HIGH FLOW

CASE TR270 STANDARD FLOW

CASE TR310 HIGH FLOW

CASE TR310 STANDARD FLOW

CASE TR340 ENHANCED HIGH FLOW

CASE TR340 STANDARD FLOW

CASE TV370 HIGH FLOW

CASE TV370 STANDARD FLOW

CASE TV450 ENHANCED HIGH FLOW

CASE TV450 STANDARD FLOW

CAT 255 HIGH FLOW

CAT 255 STANDARD FLOW

CAT 255 XPS HIGH FLOW

CAT 265 HIGH FLOW

CAT 265 STANDARD FLOW

CAT 265 XPS HIGH FLOW

CAT 275 HIGH FLOW

CAT 275 STANDARD FLOW

CAT 275 XE HIGH FLOW

CAT 275 XE STANDARD FLOW

CAT 275 XE XPS HIGH FLOW

CAT 275 XPS HIGH FLOW

CATERPILLAR 289 HIGH FLOW

CATERPILLAR 299 D3 XE

CATERPILLAR 299 HIGH FLOW

CATERPILLAR 299 STANDARD FLOW

CATERPILLER 259 HIGH FLOW

CATERPILLER 259 STANDARD FLOW

CATERPILLER 279 STANDARD FLOW

CATERPILLER 289 STANDARD FLOW

JOHN DEERE 325G HIGH FLOW

JOHN DEERE 325G STANDARD FLOW

JOHN DEERE 331 P HIGH FLOW

JOHN DEERE 331 P STANDARD FLOW

JOHN DEERE 331G HIGH FLOW

JOHN DEERE 331G STANDARD FLOW

JOHN DEERE 333 P HIGH FLOW

JOHN DEERE 333 P STANDARD FLOW

JOHN DEERE 333G HIGH FLOW

JOHN DEERE 333G STANDARD FLOW

JOHN DEERE 335 P HIGH FLOW

JOHN DEERE 335 P STANDARD FLOW

KUBOTA SVL75 HIGH FLOW

KUBOTA SVL75 STANDARD FLOW

KUBOTA SVL90 HIGH FLOW

KUBOTA SVL90 STANDARD FLOW

KUBOTA SVL95 HIGH FLOW

KUBOTA SVL95 STANDARD FLOW

KUBOTA SVL97 HIGH FLOW

KUBOTA SVL97 STANDARD FLOW

MUSTANG 1650RT STANDARD FLOW

NEW HOLLAND C332 HIGH FLOW

NEW HOLLAND C332 STANDARD FLOW

NEW HOLLAND C334 HIGH FLOW

NEW HOLLAND C345 HIGH FLOW

NEW HOLLAND C345 STANDARD FLOW

NEW HOLLAND C362 HIGH FLOW

TAKEUCHI TL10 HIGH FLOW

TAKEUCHI TL10V2 STANDARD FLOW

TAKEUCHI TL12 HIGH FLOW

TAKEUCHI TL12R2 STANDARD FLOW

TAKEUCHI TL6R STANDARD FLOW

TAKEUCHI TL8 HIGH FLOW

TAKEUCHI TL8R2 STANDARD FLOW

Feature

Description

Photo (if available)

Price

21220-2

Wiring 14-Pin Wiring Harness Allows tilt function operation from joy stick controls Used On: Bobcat (prior to 1999) Case Kubota New Holland Takeuchi Volvo JCB

$0.00

21220-1

8-Pin Wiring Harness Allows tilt function operation from joy stick controls Used On: ASV Caterpillar Komatsu Terex

$0.00

21220-3

Danuser 14-Pin Wiring Harness Allows tilt function operation from joy stick controls Used On: John Deere

$0.00

21220-4

Danuser 14-Pin Wiring Harness Allows tilt function operation from joy stick controls Used On: Caterpillar

$0.00

21220-5

Danuser 14-Pin Wiring Harness 14-Pin Allows tilt function operation from joy stick controls Used On: Bobcat (1999 & Current) *Bobcat also has a 7-Pin connector on some newer skid steer units that is not available through Danuser, contact your Bobcat dealer for a 7-Pin to 14-Pin adapter* Gehl

$0.00

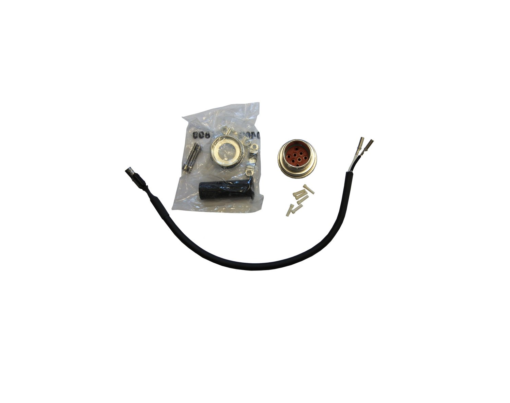

21220-U1

8-Pin Wiring Harness – Universal Requires connector contacts be installed in a switchable +12 V pin location and ground pin location. Mapping of skid-steer connector pins required. Features: Allows tilt function operation from joy stick controls Universal wiring harness Contacts are crimped on wire, but not installed in connector

$0.00

21220-U2

Danuser 14-Pin Wiring Harness – Universal Features: Allows tilt function operation from joy stick controls Universal wiring harness Contacts are crimped on wire, but not installed in connector Requires connector contacts be installed in a switchable +12 V pin location and ground pin location. Mapping of skid-steer connector pins required.

$0.00

21253

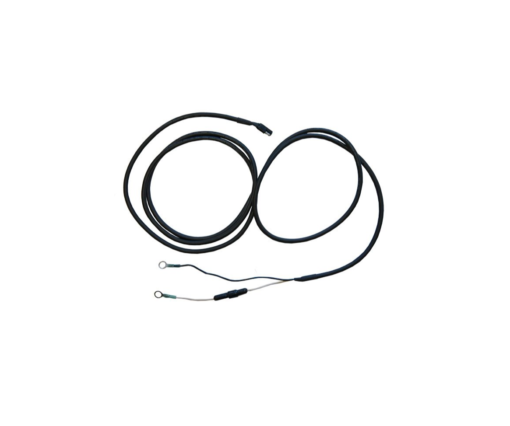

Danuser Wiring Harness – Connects To Battery For Use With: SM40 LM40 EM40 This is NOT a complete harness, it replaces the cigarette lighter adapter.

$0.00

Feature

Description

Photo (if available)

Price

21149

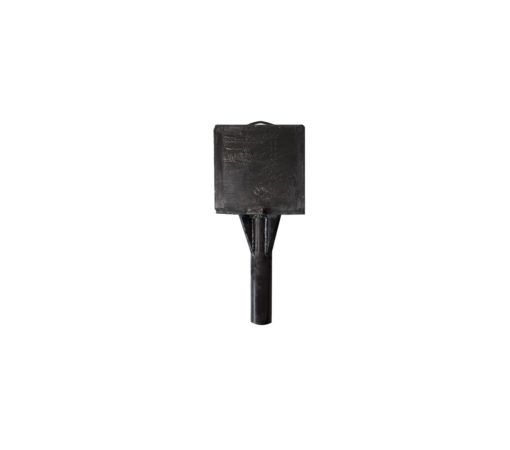

T-Post Adapter Must be added for driving t-posts.

$0.00

21212

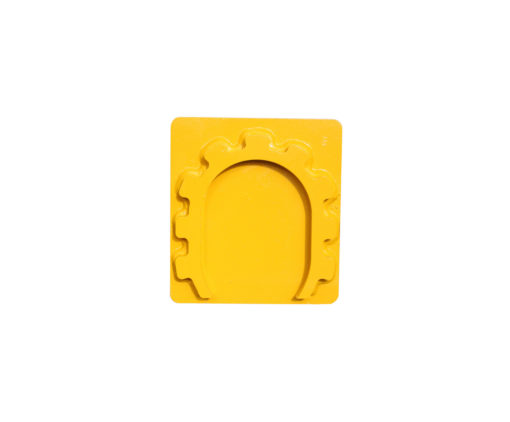

Danuser Floating Horseshoe Plate Purchase when driving smaller diameter pipe (less than 4" O.D.) in difficult conditions. Aids in keeping the post centered in the driver and reduces wear and tear on machine. Does not interfere with operation of the grapple. Works with posts 5"diameter and smaller including “T” post adapter.

$0.00

21278

Danuser Concrete Breaker Kit May be added to all Hammer models to convert to a concrete breaker. Breaks up to 9" thick reinforced concrete. Includes 500 lb. breaker attachment, foot, and additional hardware for assembling.

$0.00

21280

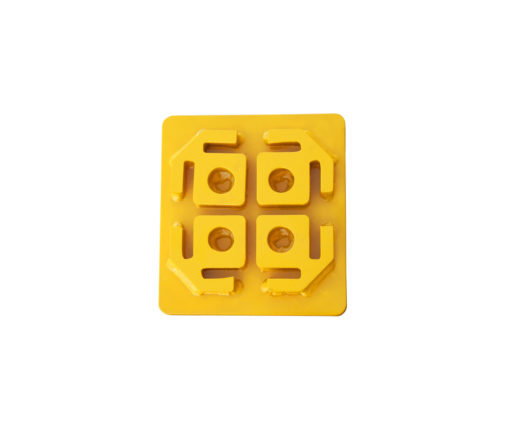

Danuser Guard Rail Plate Recommended when driving 6" or 8" I beams. Aids in keeping the guards rail from twisting and shifting. Does NOT work with grapple.

$0.00

21395

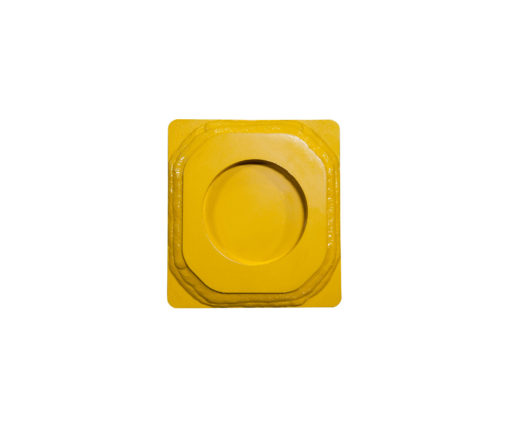

Danuser 5" Donut Plate More effective than the Floating Horseshoe Strike Plate in keeping the pipe centered when driving in difficult conditions. Reduces wear and tear on the machine. Makes grappling of pipe more challenging. Works best when using a helper to position pipe in the Hammer. More pipe fencing professionals prefer the 5" Donut Strike Plate over the Floating Horseshoe Strike Plate. Works with pipe 4.75" diameter and smaller. Will work with “T” post adapter.

$0.00

186065

Hose Extension Kit Features: Extends Hammer hoses 24? when needed on certain skid-steers (e.g. JCB, Volvo) Includes two 24? hoses and fittings.

$0.00
